Transponder systems use a passive chip embedded in the key head that responds with a unique identifier when energized by the vehicle’s RF transceiver near the ignition or reader antenna. If the immobilizer control unit receives an authorized identifier, the engine enable logic is permitted to run; if not, fuel and/or starter enable circuits remain restricted.

Ford’s implementation, commonly referenced as PATS (Passive Anti-Theft System), is one example of this architecture, which is now widespread across mainstream domestic and import platforms.

Key technical implications owners should note:

• The transponder chip itself is passive (no battery) and must be physically present and intact to respond.

• A correctly cut key blade is necessary but not sufficient; both mechanical and electronic elements must function.

• Programming (learning) is performed at the vehicle and follows the vehicle manufacturer’s validated sequence. Vendor tools and authorized procedures are used to read, teach, or generate the transponder identifier where permitted.

A standardized workflow improves success rates and prevents wasted work or unnecessary parts replacement:

1. Initial inspection & diagnostic triage
   Visual inspection of the key, blade, and ignition/reader area. Technician confirms whether a working key exists (duplicate vs. lost-all scenario), inspects for physical damage, and evaluates whether the issue is likely mechanical (blade/wear) or electronic (no transponder response).

• If all keys are lost, our technician confirms ownership via acceptable documents (photo ID plus vehicle registration, title, or insurance verification). This is standard industry practice and protects the owner and the service provider.

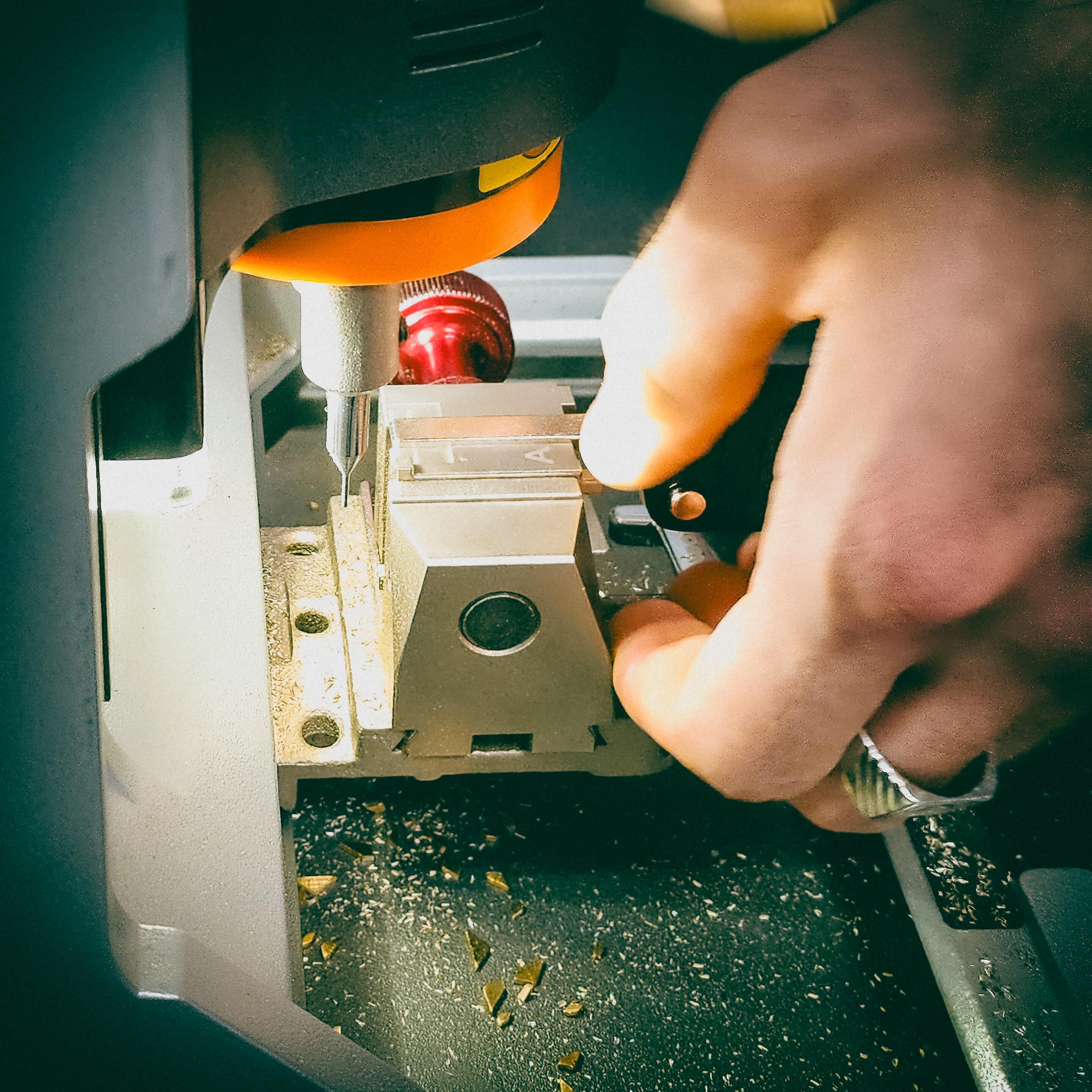

1. Blade selection and precision cutting

   • If a working key is present, cut a duplicate from the template.

   • If no working key is available: decode the VIN or access an authorized key code repository to derive the factory cut and then cut to factory tolerances. Reliable VIN-to-key workflows are standard among professional locksmiths and depend on accurate VIN data.

2. Transponder learning / programming

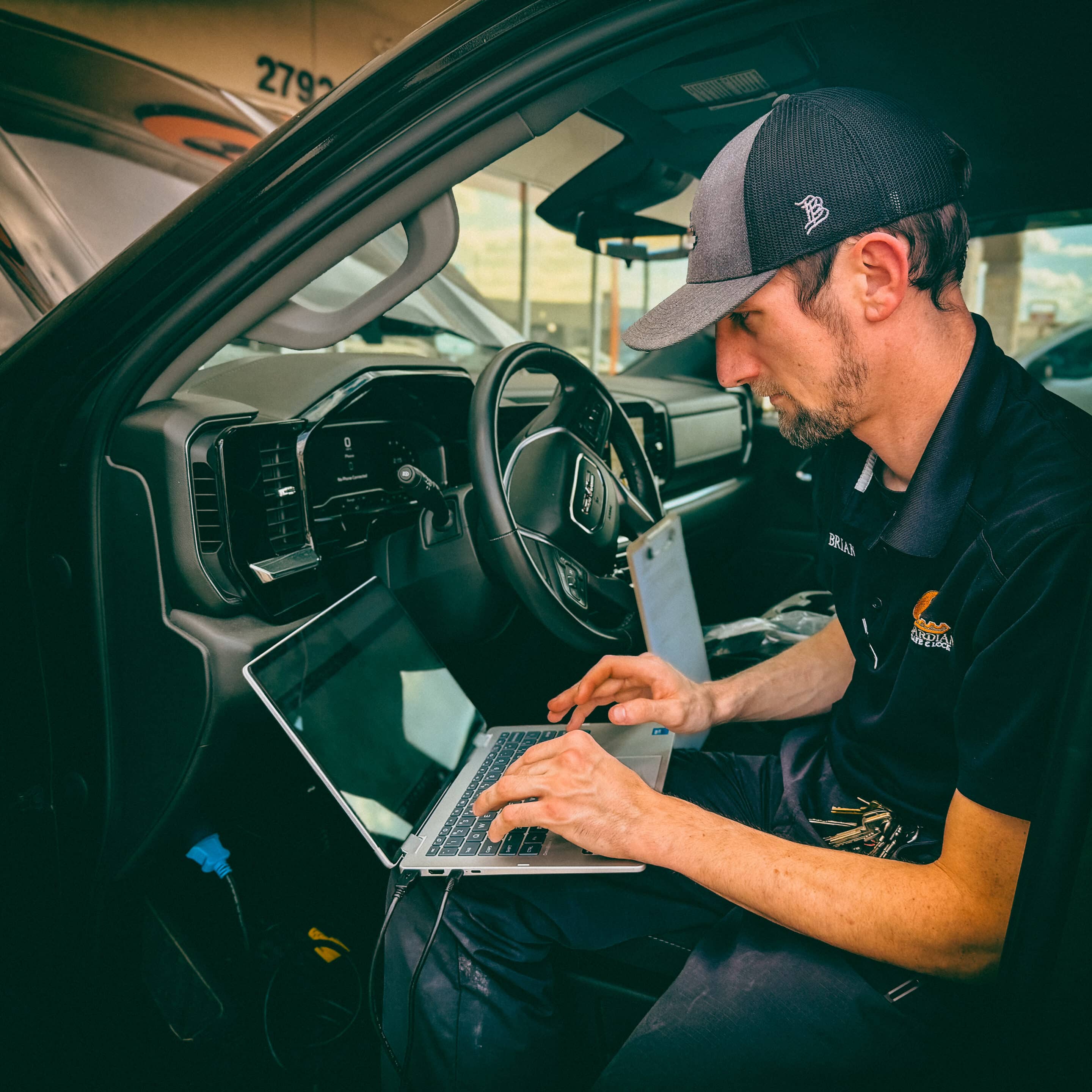

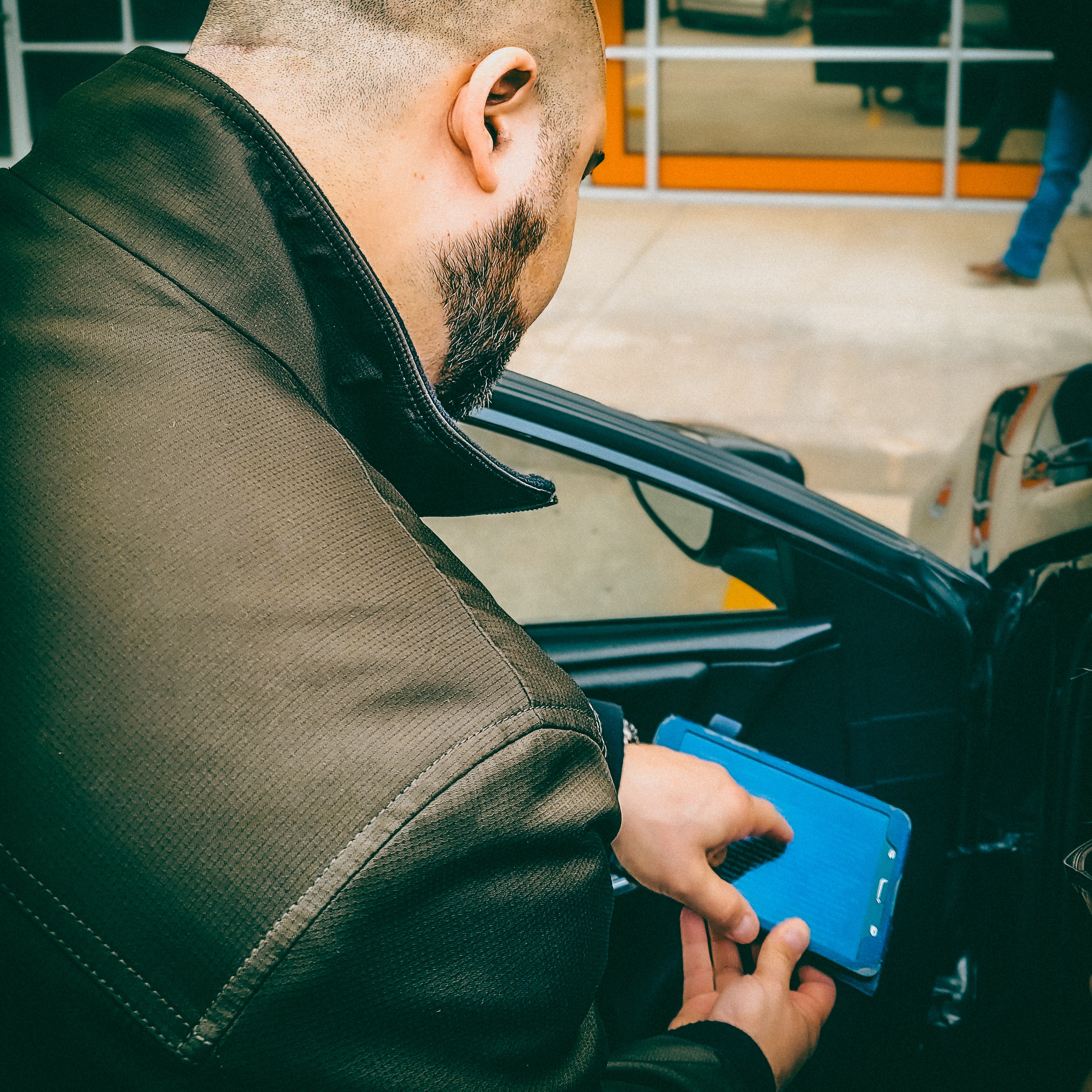

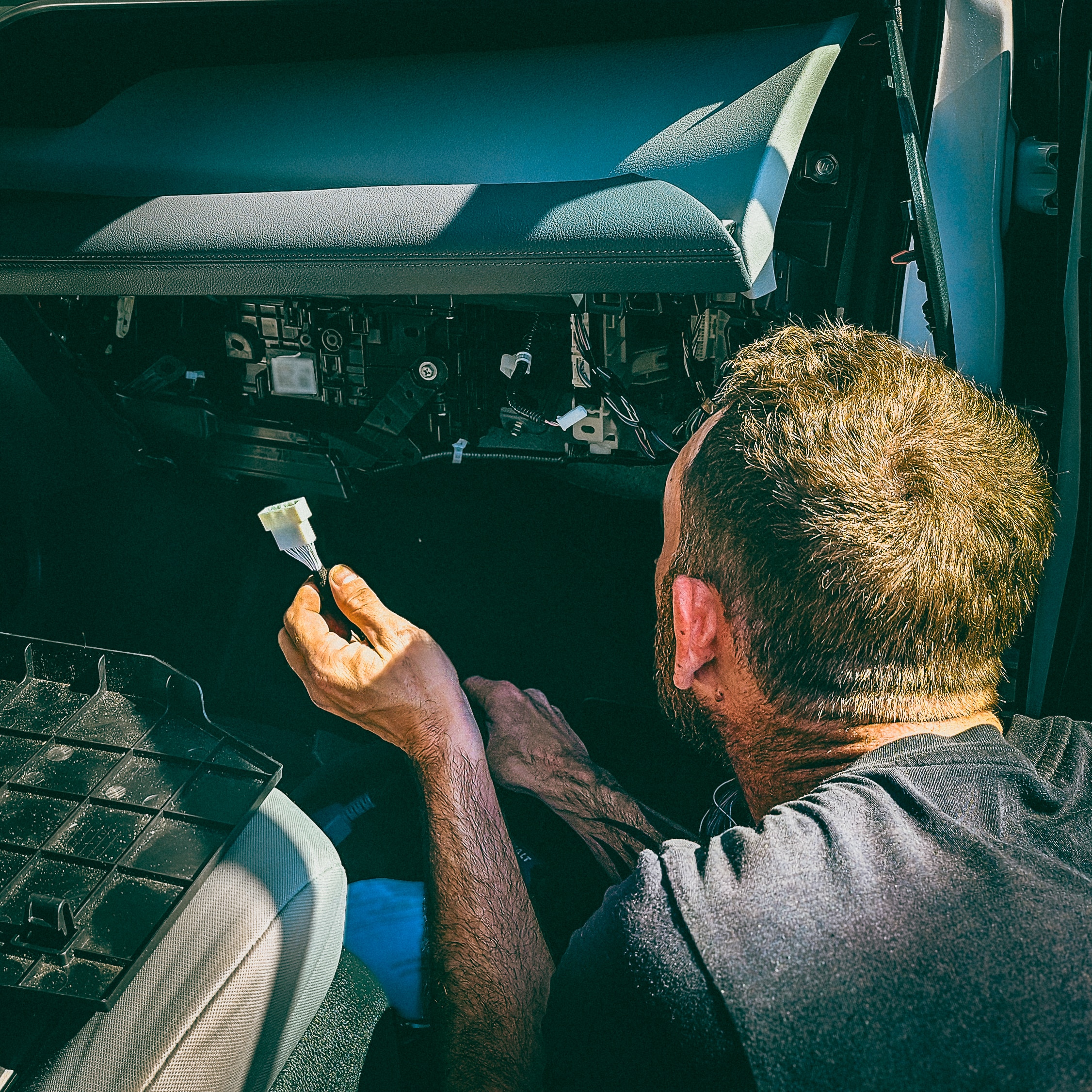

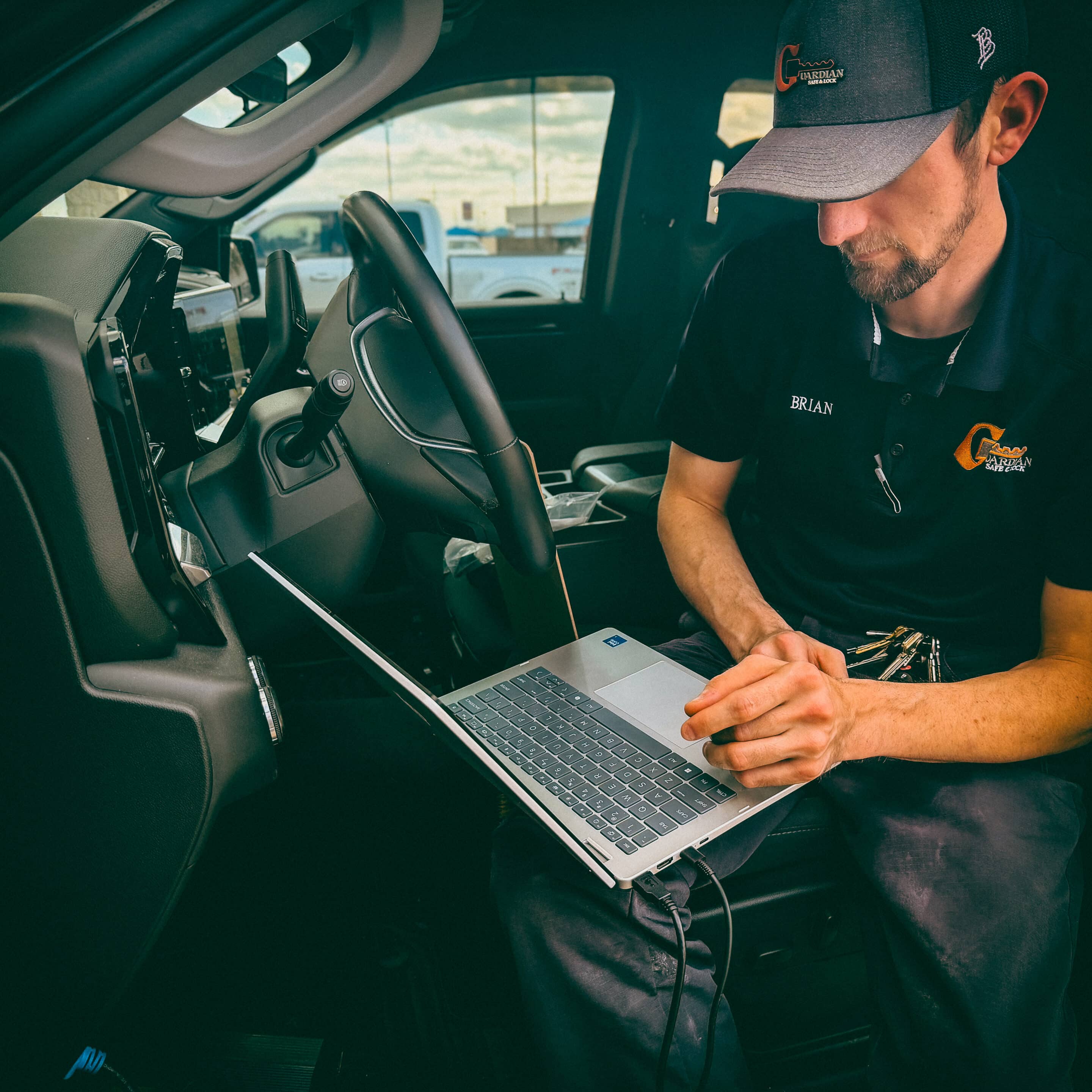

   Using validated programmer interfaces and manufacturer sequences, the new transponder is taught to the vehicle. Procedures vary by make/model and may involve ignition-cycle sequences, OBD tool commands, or remote pairing steps. The programming operation is performed only after ownership is verified and is executed using secure tools and documented steps.

3. Functional validation
   Technician confirms mechanical engagement, verifies ignition turn and wheel-lock disengagement, starts the engine repeatedly, and tests any remote features. Multiple start cycles are standard to confirm repeatable acceptance.

4. Documentation and warranty
   Customers receive a written record of the keys created (including VIN used for code generation where permissible) and a limited workmanship warranty covering failures traceable to cutting or programming performed by the technician.

Reliable outcomes depend on three categories of capability:

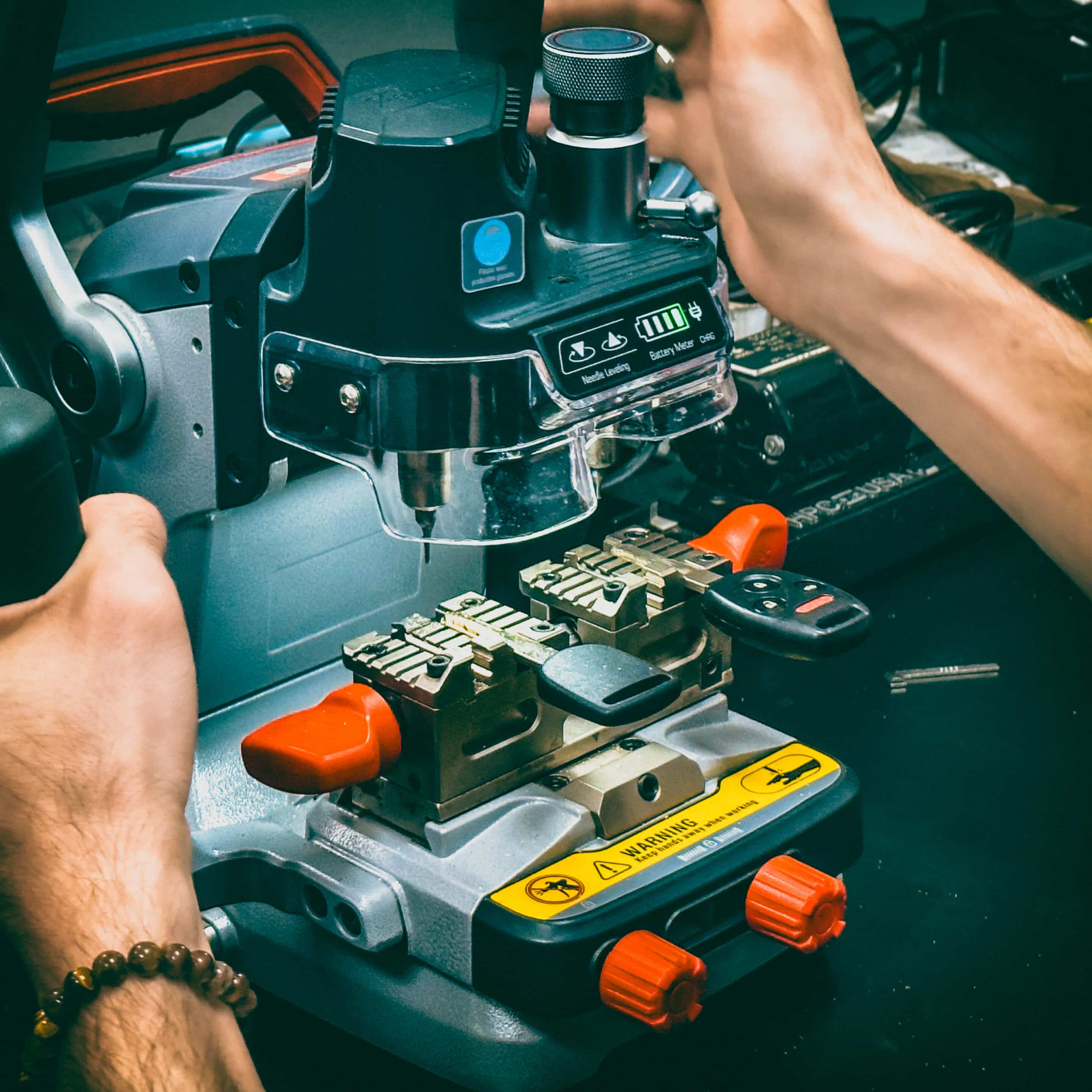

• Cutting equipment: calibrated edge-cut and milling machines for standard, double-sided, and milled/laser blanks.

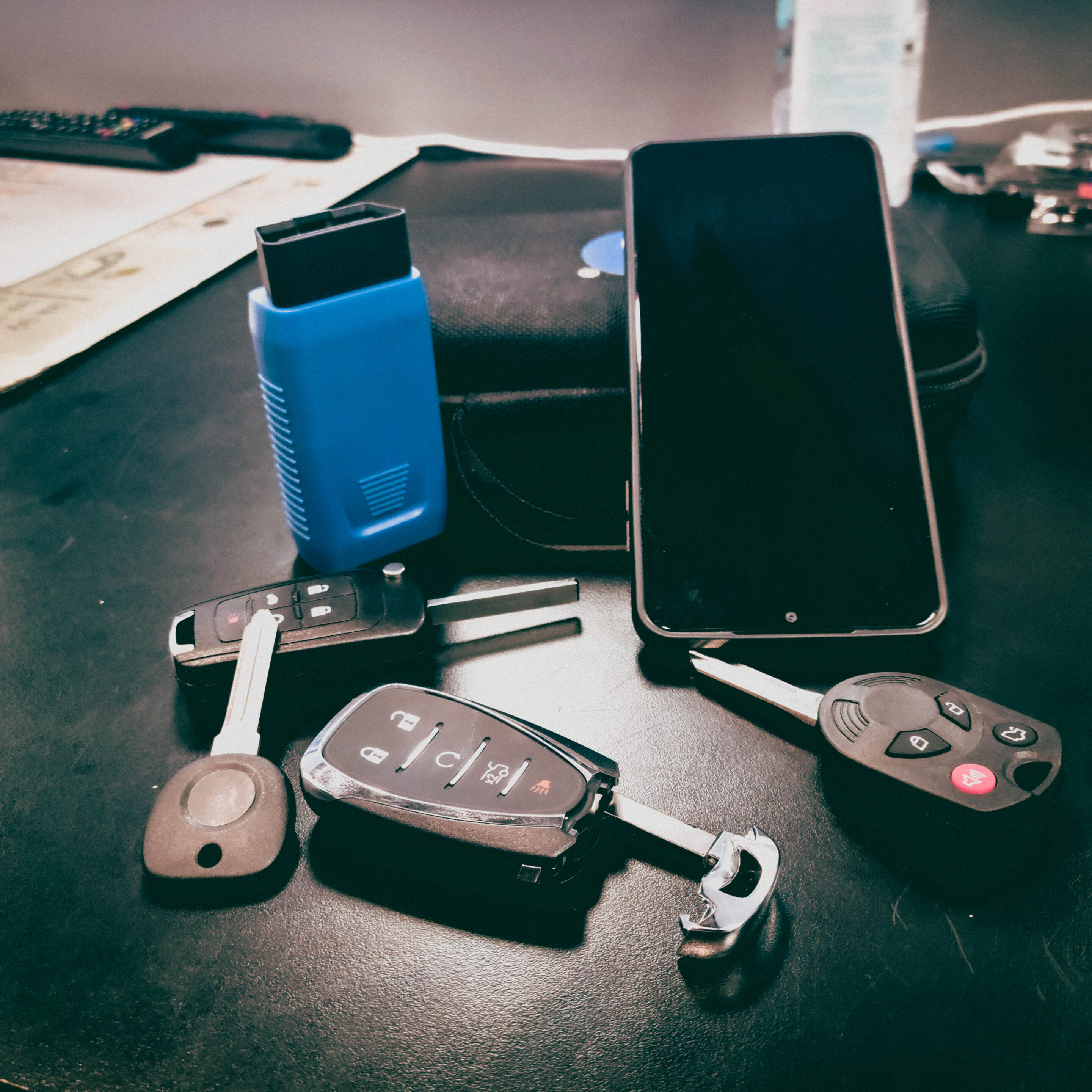

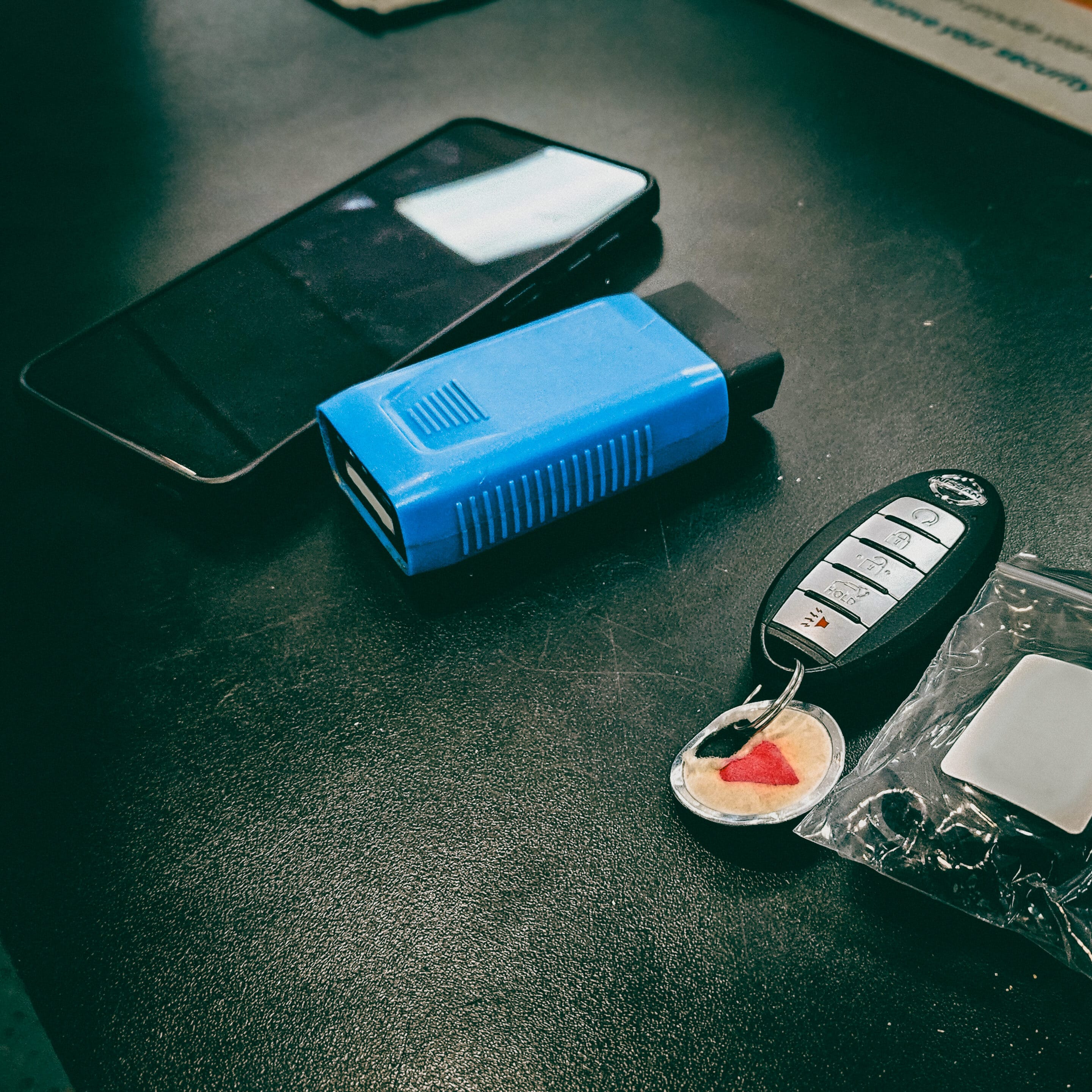

• Programming interfaces: validated programmer hardware and software compatible with manufacturer learning sequences.

• Technician competency: training in VIN decoding, key code derivation, transponder read/teach sequences, and secure ownership verification (industry certifications such as those offered by recognized trade organizations are indicative of capability).

Technicians follow checklists that separate mechanical faults (e.g., worn blades, broken key fragments) from transponder or reader faults without performing module-level repairs.

Timing varies with the scenario and the vehicle platform. Industry examples and provider averages indicate the following ranges for on-vehicle work:

• Duplicate from a working key: typically 20–45 minutes on site.

• Lost-all-keys recovery (VIN-based cut + programming): commonly 45–120 minutes depending on platform complexity and part availability.

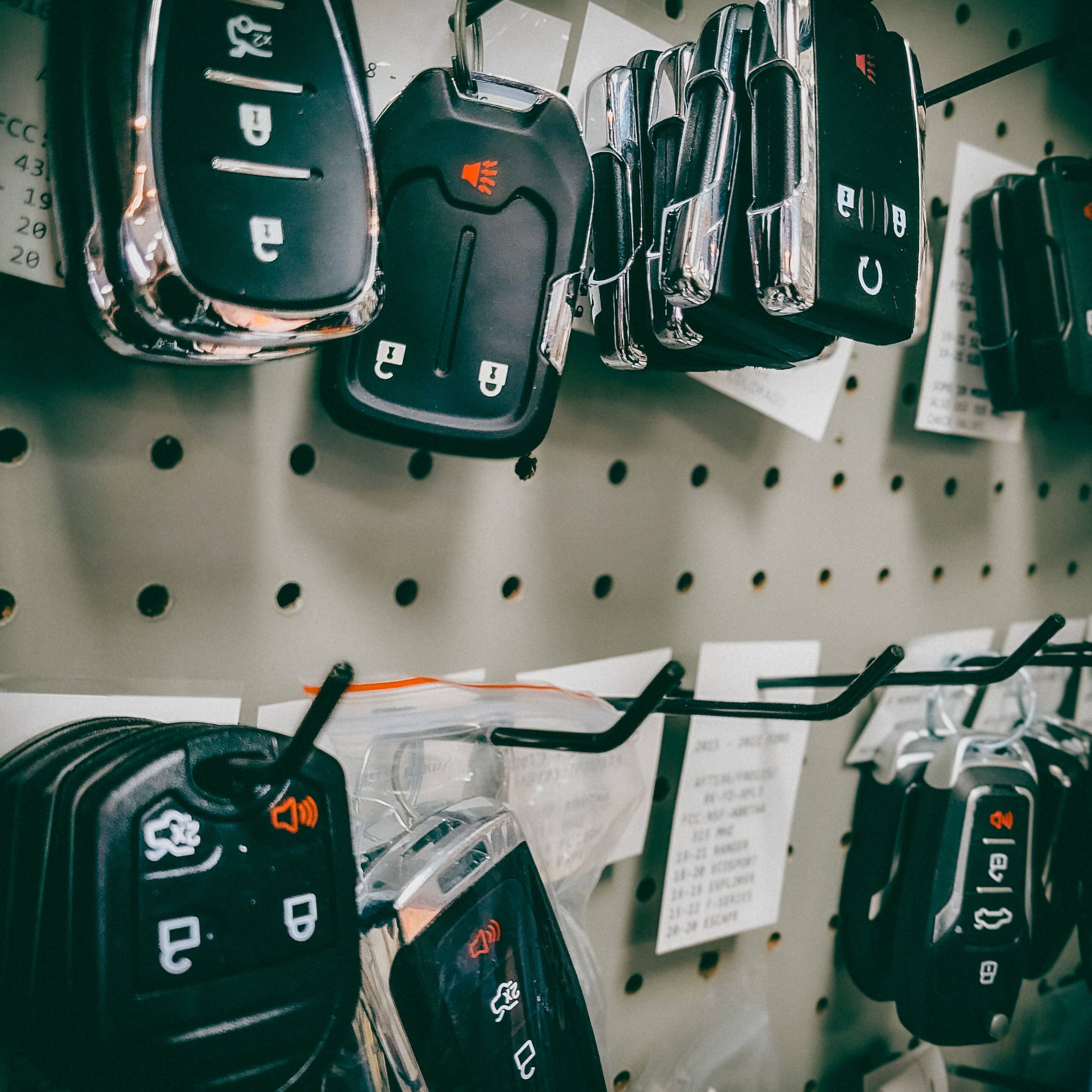

• Remote + transponder replacements: typically 30–90 minutes when the correct parts are available.

These ranges reflect standard on-site practices reported by professional mobile locksmith services; scheduling and part procurement can extend total elapsed time.

For secure, repeatable transponder key programming and replacement performed to industry standards, contact our automotive scheduling desk at:

• Call: 832-534-8687 (click to call on mobile)

• Text: 832-493-5888 (Tap to text, including images)

• Visit: 27920 Tomball Pkwy, Ste. 240, Tomball, TX 77375

• Email: CustomerService@GuardianSafeAndLock.com

Technicians follow documented ownership verification, precise cutting procedures, and manufacturer-validated learning sequences to deliver keys that work reliably at handoff.
